Tool cooler
ToolCooler是利用文氏管原理空气冷却装置,可以代替削切冷却水,削切油,润滑油使用的工程,能改善因大气污染而造成的作业环境污染。


Tool Cooler 特点
用Magnetic Base 安装使用简便。
小型,轻重,简单构造,携带及安装方便
只使用压缩空气为动力,安全根本防爆构造.
采用不锈钢材质
使用 黄铜材质发生器和 Control Valve(控制阀门), Viton O-rings 。
Generator更换简便,可制作多种空气流量及冷却容量.

도면을 클릭하면 큰이미지를 보실수 있습니다.
Adjustable Spot Cooler有15 SCFM (425 SLPM), 25 SCFM (708 SLPM) and 30 SCFM ( 850 SLPM)的等3种flow rate消耗形式供给。

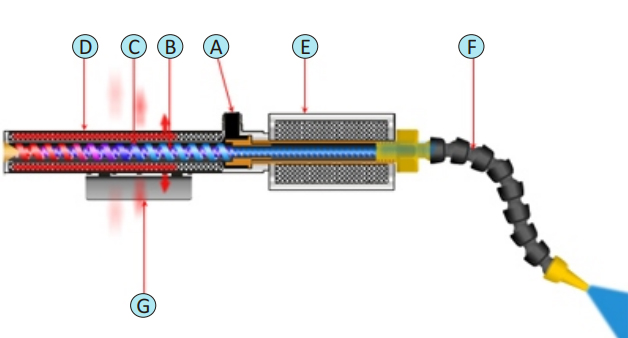

Tool Cooler – HOW TO WORKS

Compressed air enters at point (A) into the vortex tube component of the tool cooling. The vortex tube splits the compressed air into a cold (B) and hot (C) stream of air. The hot air from the vortex tube is vented to the atmosphere at point (D) after being muffled to reduce noise. Cold air enters into the muffler (E) and then distributed through the hose distribution kit (F) and onto the tool being cooled. A strong magnet (G) holds the tool cooler onto the machine
