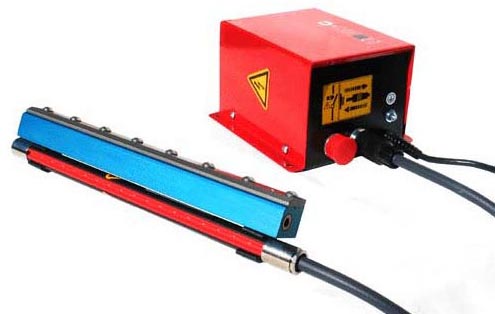

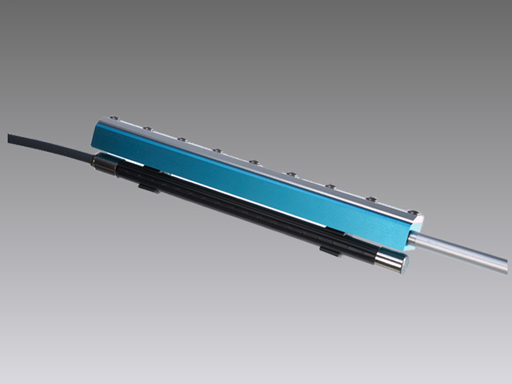

Standard Air Blade Ionizer

Standard Air Blade和Static Bar连接的产品，高速度、远距离或者静电无法到达的部位使用。利用Air Knife X-Stream Ionizer一次性去除静电和灰尘或者微小颗粒。

Standard Air Blade Ionizer 特点

Standard Air BladeIonizer是利用少量压缩空气为能源，将静电无法达到的，或者高速度为要素作用处，提供强力可调节薄膜形态增幅供应压缩空气，去除静电及异物的设备。Air –Blades采用阳极氧化铝或 Stainless Steel材质制作供应. 大部分情况静电棒使用Haug社制造的，根据需求可另行定制高速度静电棒。也可以另行采购可清洗的静电棒。

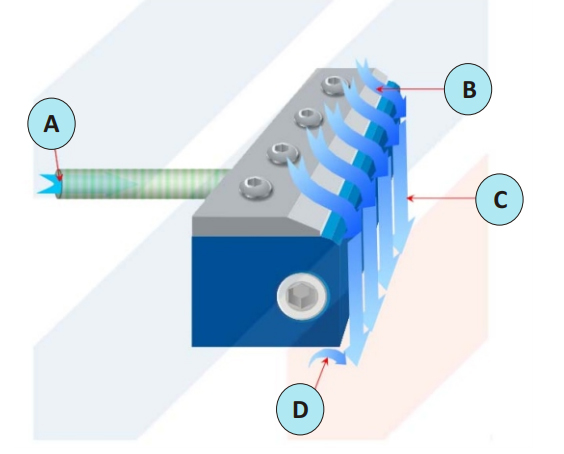

Standard Air Blade Ionizer 启动原理

Standard Air Blade System少量压缩空气为能源， 吸收周围大量空气的科恩达效应，形成薄膜气流增幅供给。薄膜形态喷射的空气通过离子棒时形成强阴阳极离子层,电荷集中喷射到产品表面，中和静电及去除异物。
Standard Air Blade Ionizer
Effective
Length		 Model
Number		 Material of
Construction
3” 15003 Aluminum
6” 15006 Aluminum
12” 15012 Aluminum
18” 15018 Aluminum
24” 15024 Aluminum
30” 15030 Aluminum
36” 15036 Aluminum

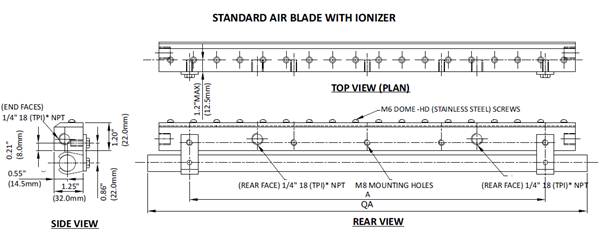

Dimensions

도면을 클릭하면 큰이미지를 보실수 있습니다.

Model Effective Length "A" "OA"
 15003 3" (76mm) 44mm 125mm
15006 6" (150mm) 90mm 200mm
15012 8" (203mm) 143mm 254mm
15018 12" (305mm) 250mm 351mm
15024 18" (457mm) 390mm 508mm
15030 24" (610mm) 543mm 661mm
15036 36" (914mm) 844mm 965mm
Power Supplies
Voltage Model
Number		 Description
110V ENC-110/2 Two outlet (Can connect two static bars)
220V ENC-220/2 Two outlet (Can connect two static bars)
110V ENC-110/4 Four outlet (Can connect four static bars)
220V ENC-220/4 Four outlet (Can connect four static bars)
110V Multistat 110 Four outlet (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.)
220V Multistat 220 Four outlet (Can connect four static bars plus monitors performance. Can be connected into a system alarm or indicating light.)
